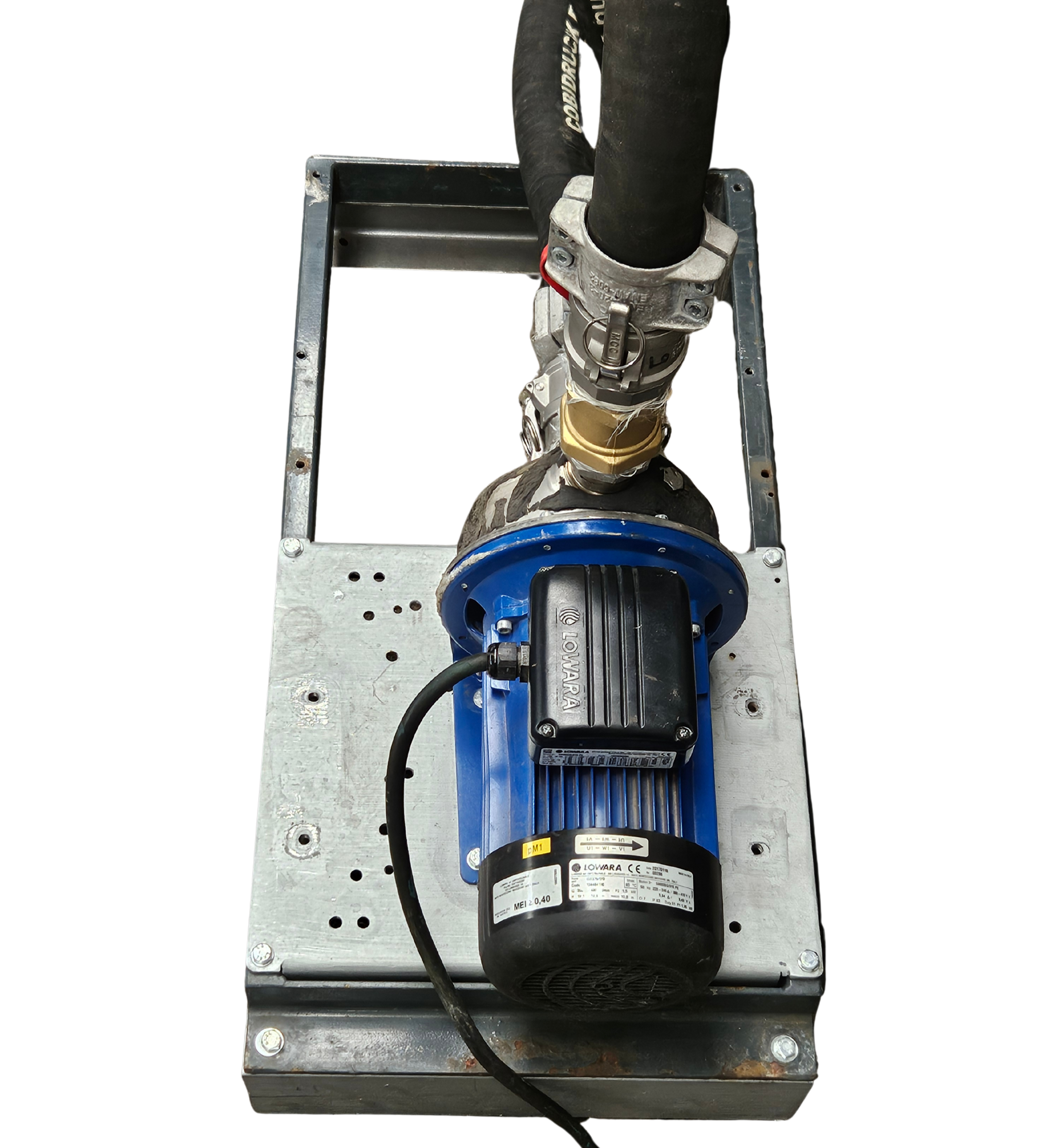

Pump P264 P264 28/1,1

Pump P264 P264 28/1,1

Connection size

2"

Dimensions

860 x 400 x 600 mm

Weight

40 kg

Pump data
Volume flow (m³/h) 12 28 -
Head (m) 19 11 -
Nominal pressure (bar) 1,9 1,1 -
Boundary conditions
Maximum pressure8 bar
Min. temperature-10 °C
Max. temperature85 °C
Electrical data
Supply voltage400 V / 50 Hz / 3 Ph
Electrical connection16 A CEE Stecker
Max. current draw3.2 A
Total connected load1.5 kW
Connection options
Flange✗
Camlock✓
Storz✗
Connection size2"
ValveStrangregulierventil
Dimensions and weight
Length860 mm
Width400 mm
Height600 mm
Weight40 kg
