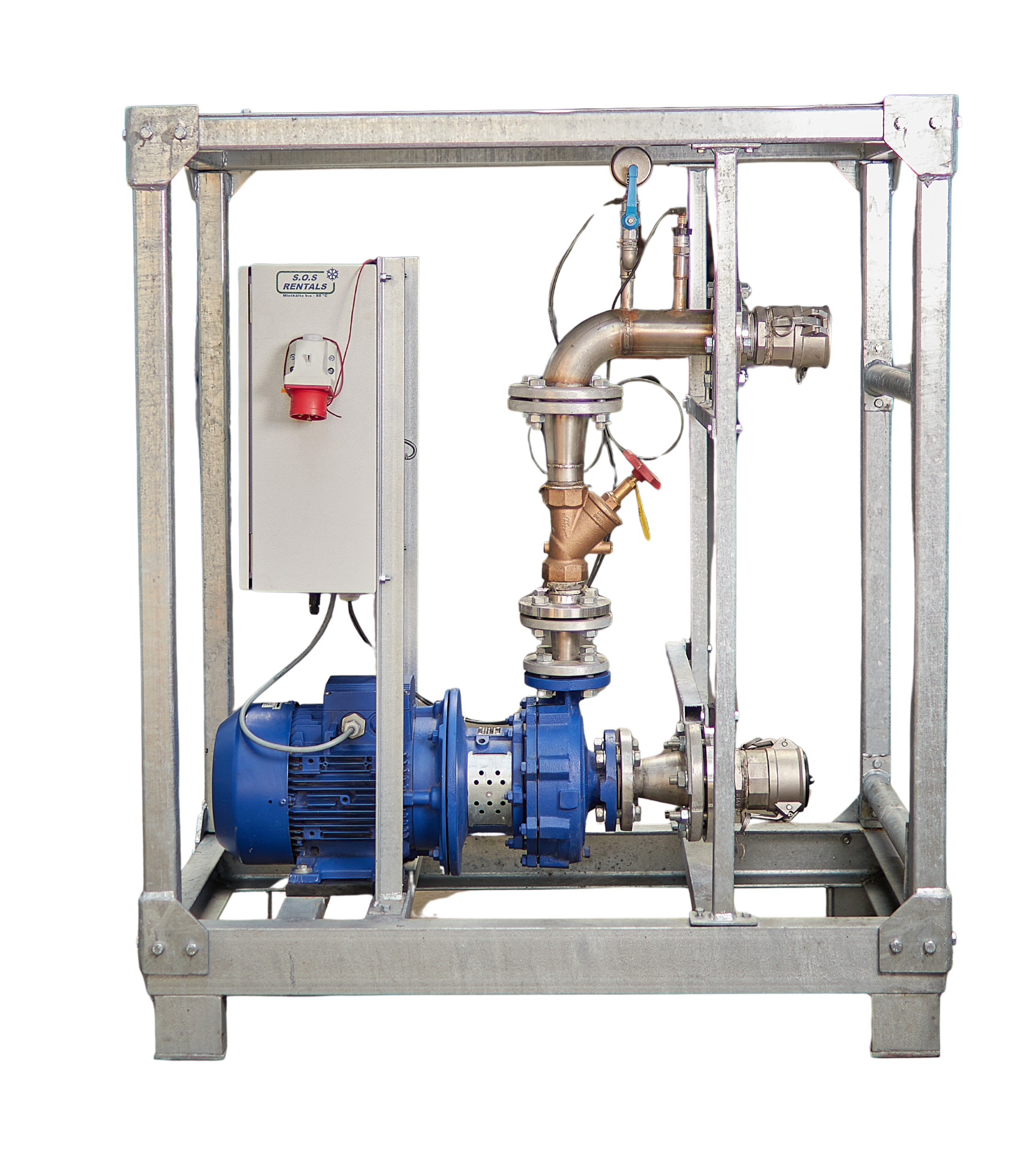

Pump P263 P263 132/2,0

Pump P263 P263 132/2,0

Connection size

4"

Dimensions

1450 x 750 x 1335 mm

Weight

260 kg

Pump data
Volume flow (m³/h) 132 - -
Head (m) 20 - -
Nominal pressure (bar) 2,0 - -
Boundary conditions
Maximum pressure16 bar
Min. temperature-30 °C
Max. temperature140 °C
Electrical data
Supply voltage400 V / 50 Hz / 3 Ph
Electrical connection32 A CEE Stecker
Max. current draw20.5 A
Total connected load11 kW
Connection options
Flange✓
Camlock✓
Storz✗
Connection size4"
ValveStrangregulierventil
Dimensions and weight
Length1450 mm
Width750 mm
Height1335 mm
Weight260 kg
