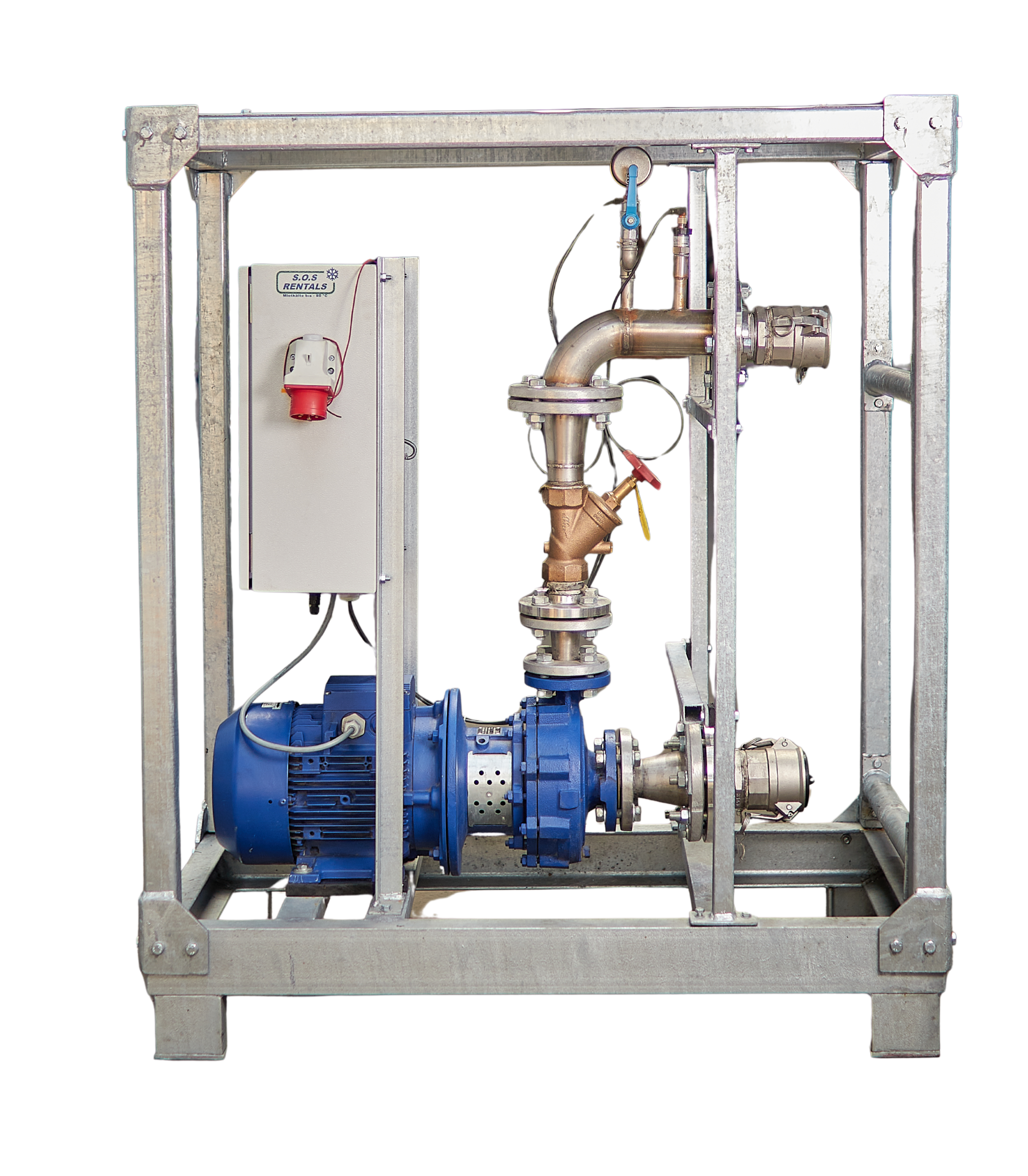

Pump P261 P261 47/2,5

Pump P261 P261 47/2,5

Connection size

3"

Dimensions

1395 x 740 x 1250 mm

Weight

160 kg

Pump data
Volume flow (m³/h) 24 47 72
Head (m) 31 25 18
Nominal pressure (bar) 3,1 2,5 1,8
Boundary conditions
Maximum pressure16 bar
Min. temperature-20 °C
Max. temperature140 °C
Electrical data
Supply voltage400 V / 50 Hz / 3 Ph
Electrical connection16 A CEE Stecker
Max. current draw11 A
Total connected load5.5 kW
Connection options
Flange✓
Camlock✓
Storz✗
Connection size3"
ValveStrangregulierventil
Dimensions and weight
Length1395 mm
Width740 mm
Height1250 mm
Weight160 kg
