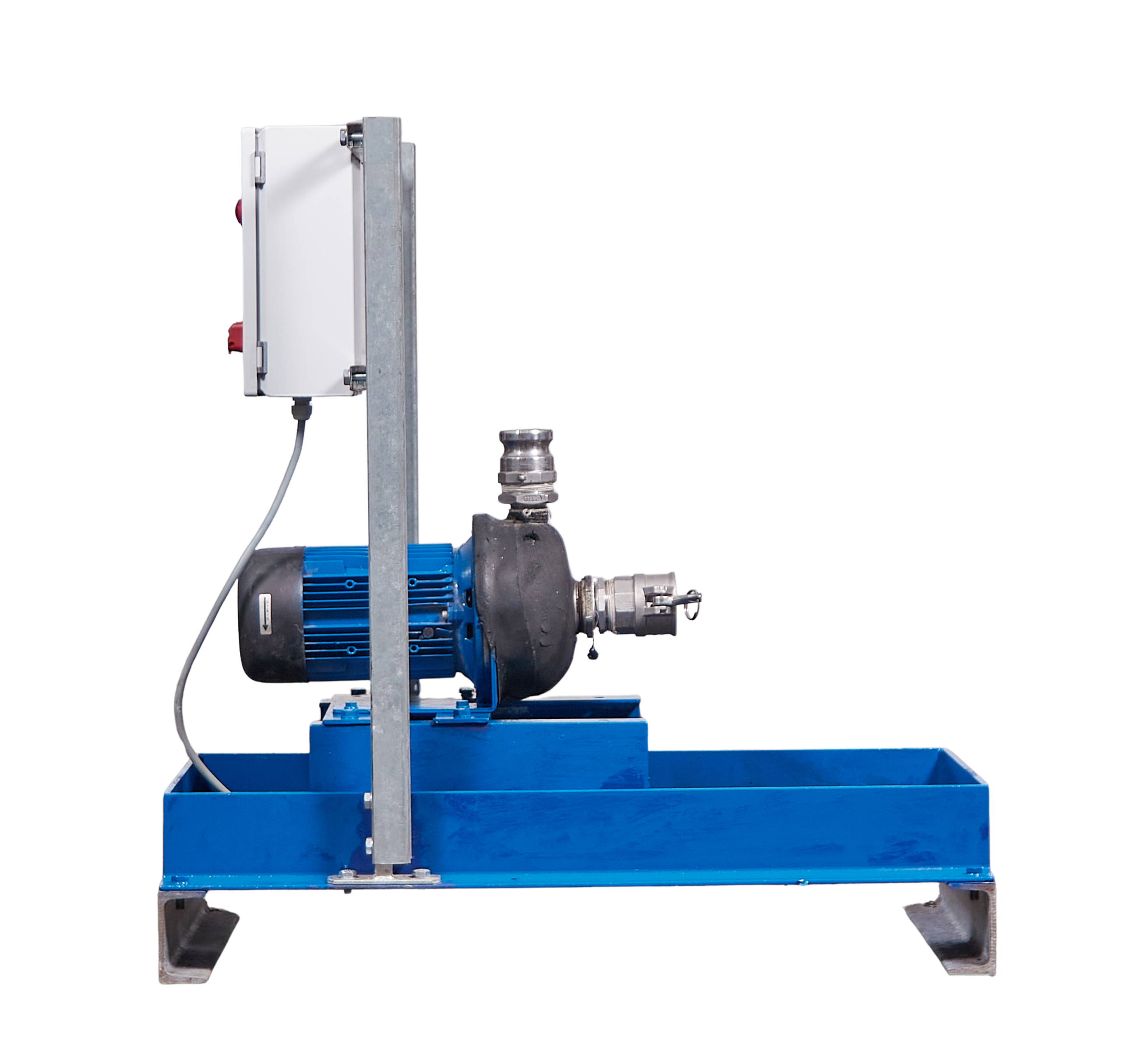

Pump P258 P258 20/1,2

Pump P258 P258 20/1,2

Connection size

2"

Dimensions

900 x 500 x 940 mm

Weight

40 kg

Pump data
Volume flow (m³/h) 5 20 -
Head (m) 29 12 -
Nominal pressure (bar) 2,9 1,2 -
Boundary conditions
Maximum pressure8 bar
Min. temperature-10 °C
Max. temperature85 °C
Electrical data
Supply voltage400 V / 50 Hz / 3 Ph
Electrical connection16 A CEE Stecker
Max. current draw4.6 A
Total connected load2.5 kW
Connection options
Flange✗
Camlock✓
Storz✗
Connection size2"
Dimensions and weight
Length900 mm
Width500 mm
Height940 mm
Weight40 kg
