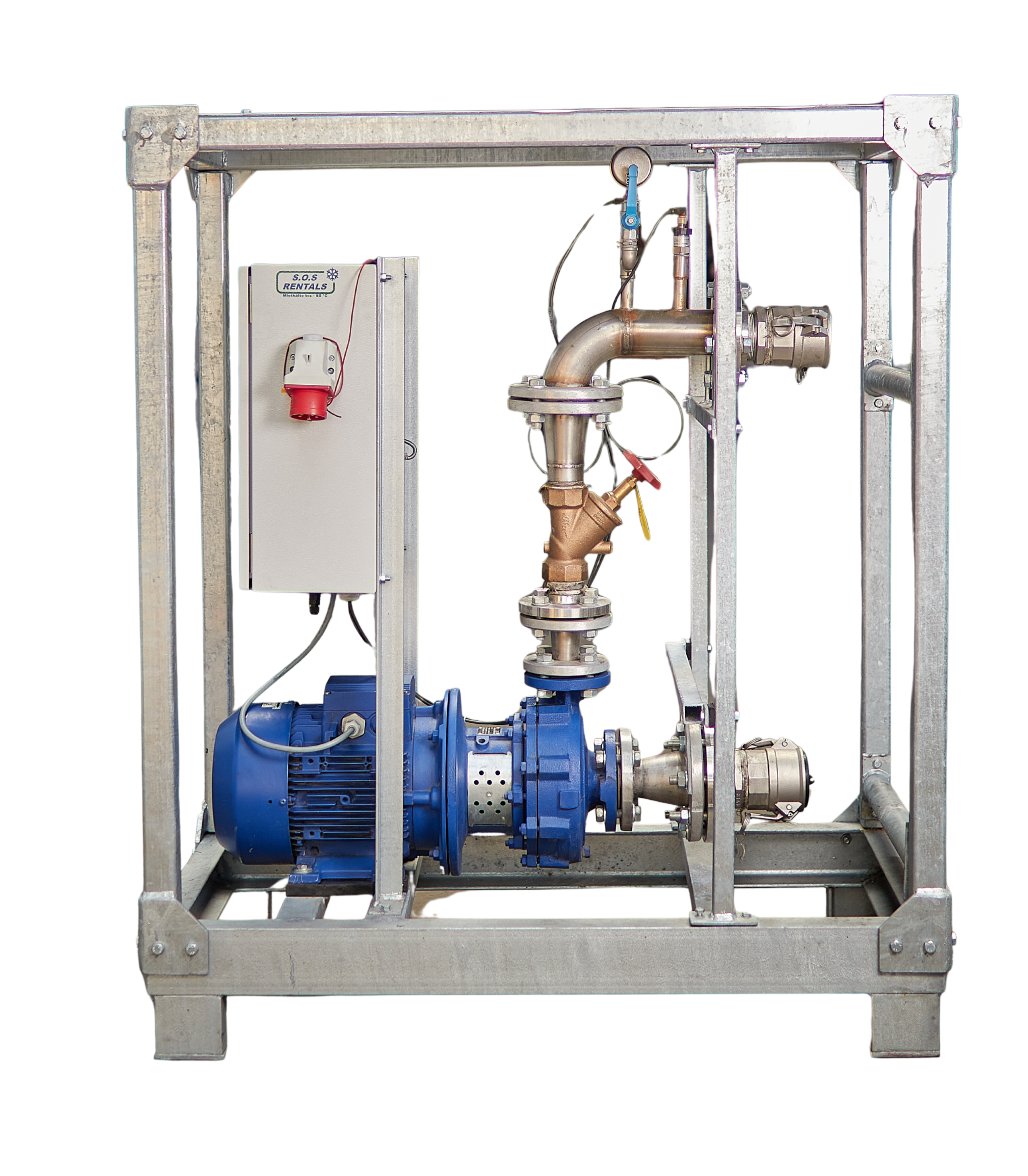

Pump P251 P251 55/5,3

Pump P251 P251 55/5,3

Connection size

4"

Dimensions

1380 x 900 x 1200 mm

Weight

300 kg

Pump data
Volume flow (m³/h) 10 55 -
Head (m) 75 53 -
Nominal pressure (bar) 7,5 5,3 -
Boundary conditions
Maximum pressure16 bar
Min. temperature-30 °C
Max. temperature140 °C
Electrical data
Supply voltage400 V / 50 Hz / 3 Ph
Electrical connection32 A CEE Stecker
Max. current draw28.7 A
Total connected load15 kW
Connection options
Flange✓
Camlock✓
Storz✗
Connection size4"
ValveStrangregulierventil
Dimensions and weight
Length1380 mm
Width900 mm
Height1200 mm
Weight300 kg
