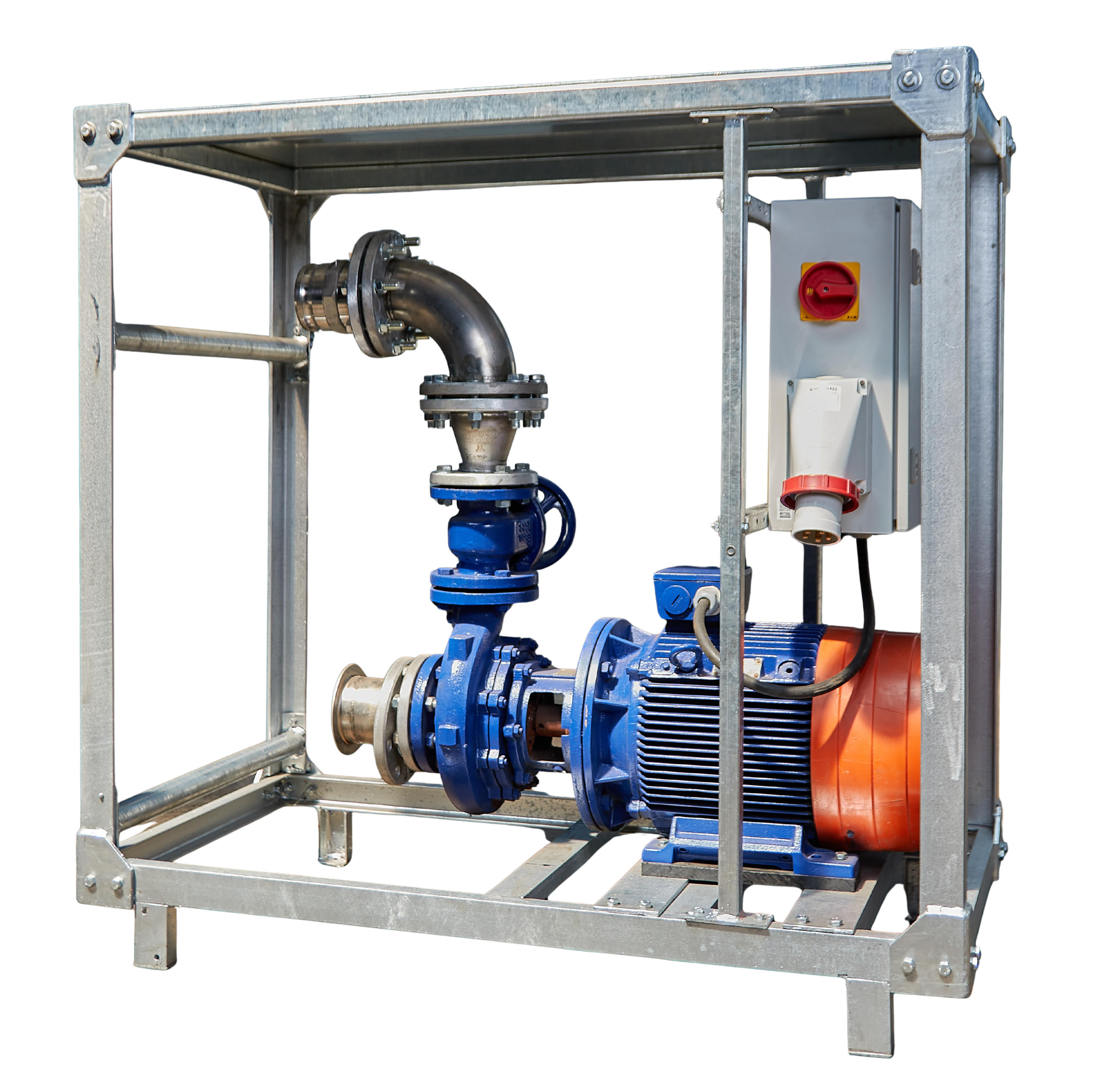

Pump P248 P248 104/5,3

Pump P248 P248 104/5,3

Connection size

-

Dimensions

1450 x 750 x 1400 mm

Weight

-

Pump data
Volume flow (m³/h) 80 90 104
Head (m) 55 54 53
Nominal pressure (bar) 5,5 5,4 5,3
Boundary conditions
Maximum pressure16 bar
Min. temperature-30 °C
Max. temperature140 °C
Electrical data
Supply voltage400 V / 50 Hz / 3 Ph+N
Electrical connection63 A CEE Stecker
Total connected load22 kW
Connection options
Flange✓
Camlock✓
Storz✓
ValveStrangregulierventil
Dimensions and weight
Length1450 mm
Width750 mm
Height1400 mm
Special equipment
Kompaktes Transportgestell
Plug & Work durch einfache Bedienung
Notaus
