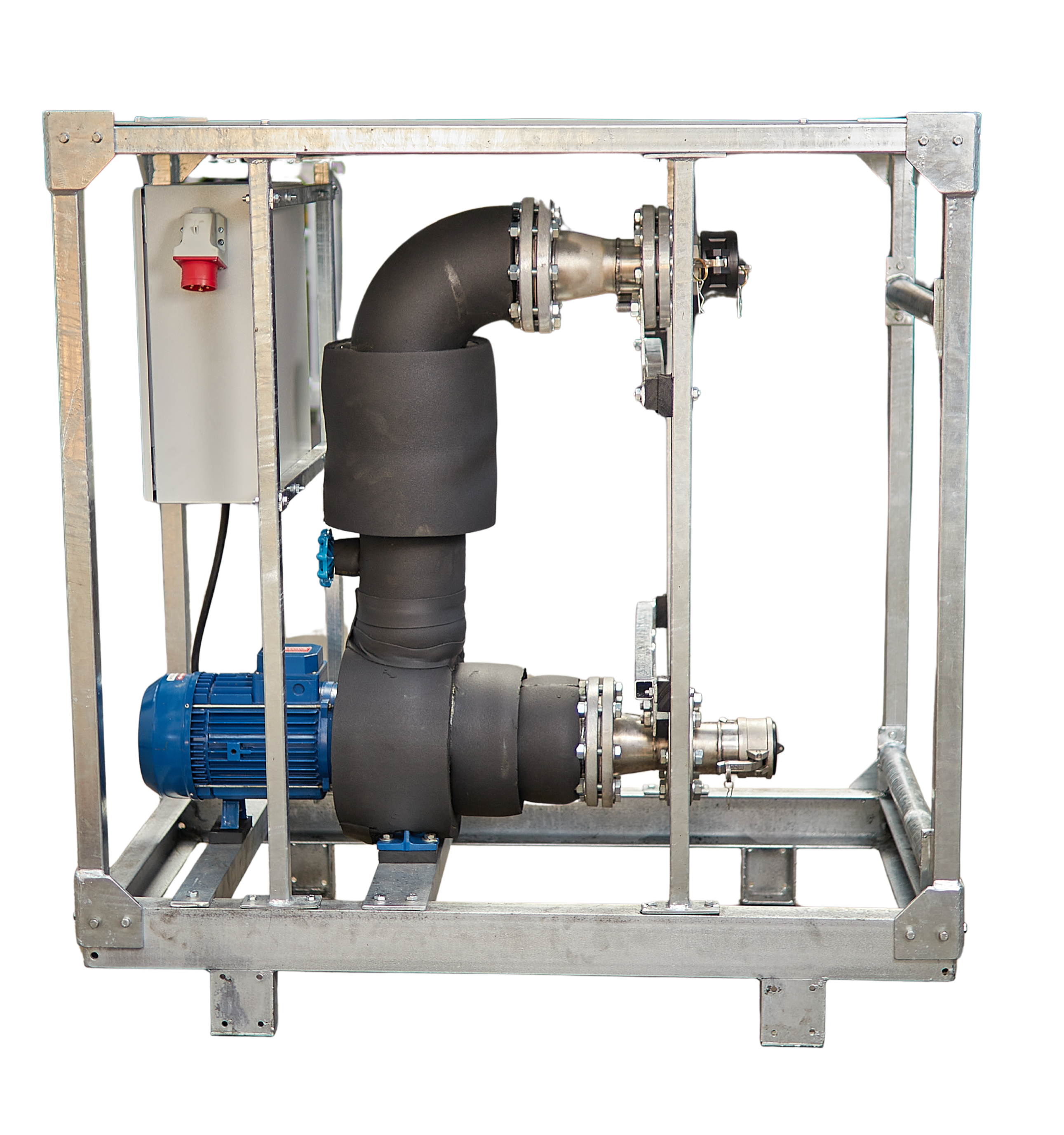

Pump P245 P245 45/2,7

Pump P245 P245 45/2,7

Connection size

-

Dimensions

1400 x 750 x 1450 mm

Weight

-

Pump data
Volume flow (m³/h) 18 36 45
Head (m) 44 34 27
Nominal pressure (bar) 4,4 3,4 2,7
Boundary conditions
Maximum pressure12 bar
Min. temperature-20 °C
Max. temperature85 °C
Electrical data
Supply voltage400 V / 50 Hz / 3 Ph+N
Electrical connection16 A CEE Stecker
Total connected load5.5 kW
Connection options
Flange✓
Camlock✓
Storz✓
ValveStrangregulierventil
Dimensions and weight
Length1400 mm
Width750 mm
Height1450 mm
Special equipment
Elektronischer Softstarter
Fehlerstromschalter
Notaus
