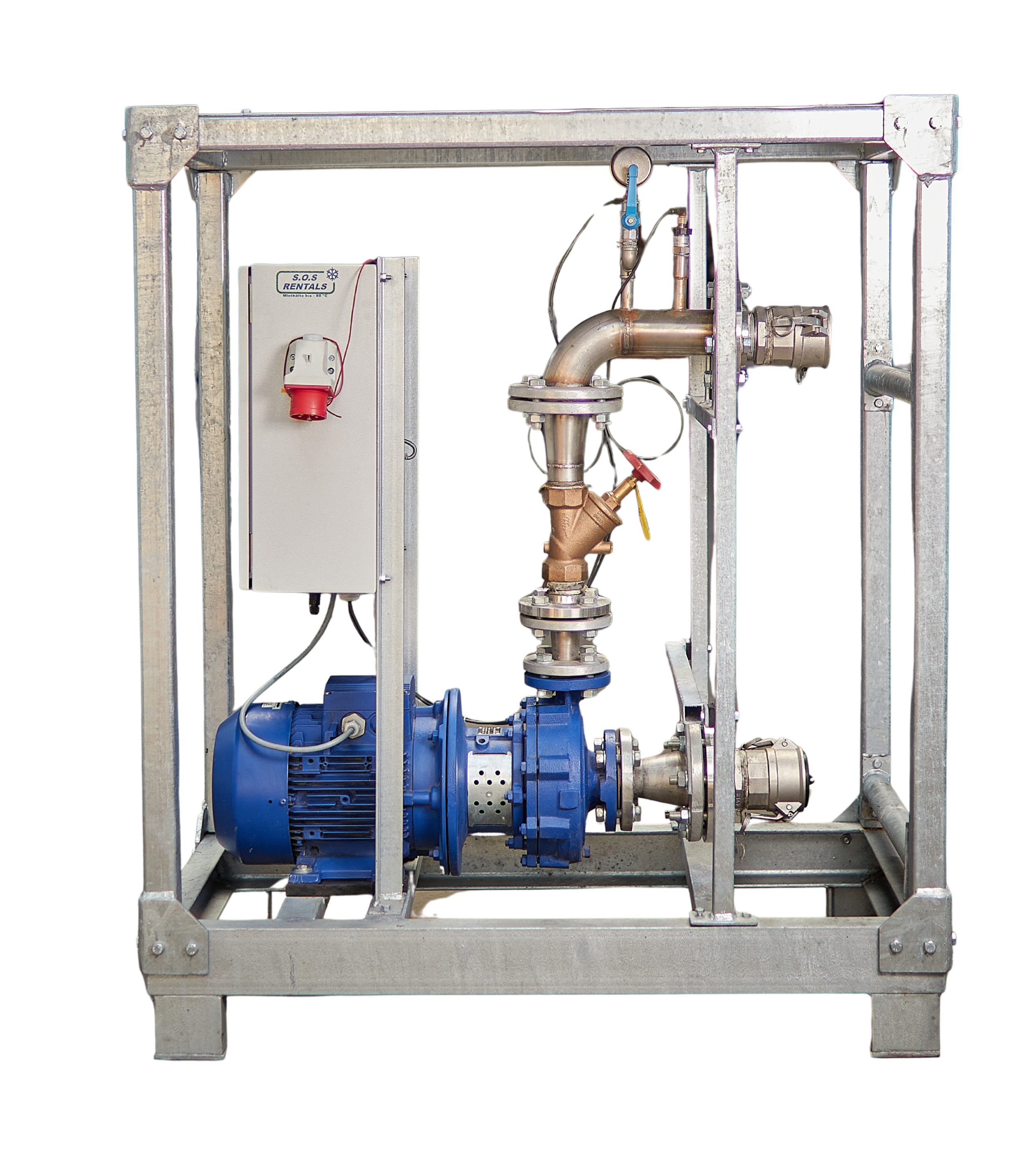

Pump P243 P243 36/3,0

Pump P243 P243 36/3,0

Connection size

-

Dimensions

1250 x 650 x 1450 mm

Weight

-

Pump data
Volume flow (m³/h) 36 84 -
Head (m) 30,6 14,8 -
Nominal pressure (bar) 3,0 1,4 -
Boundary conditions
Maximum pressure16 bar
Min. temperature-30 °C
Max. temperature140 °C
Electrical data
Supply voltage400 V / 50 Hz / 3 Ph
Electrical connection16 A CEE Stecker
Total connected load5.5 kW
Connection options
Flange✓
Camlock✓
Storz✓
ValveStrangregulierventil
Dimensions and weight
Length1250 mm
Width650 mm
Height1450 mm
