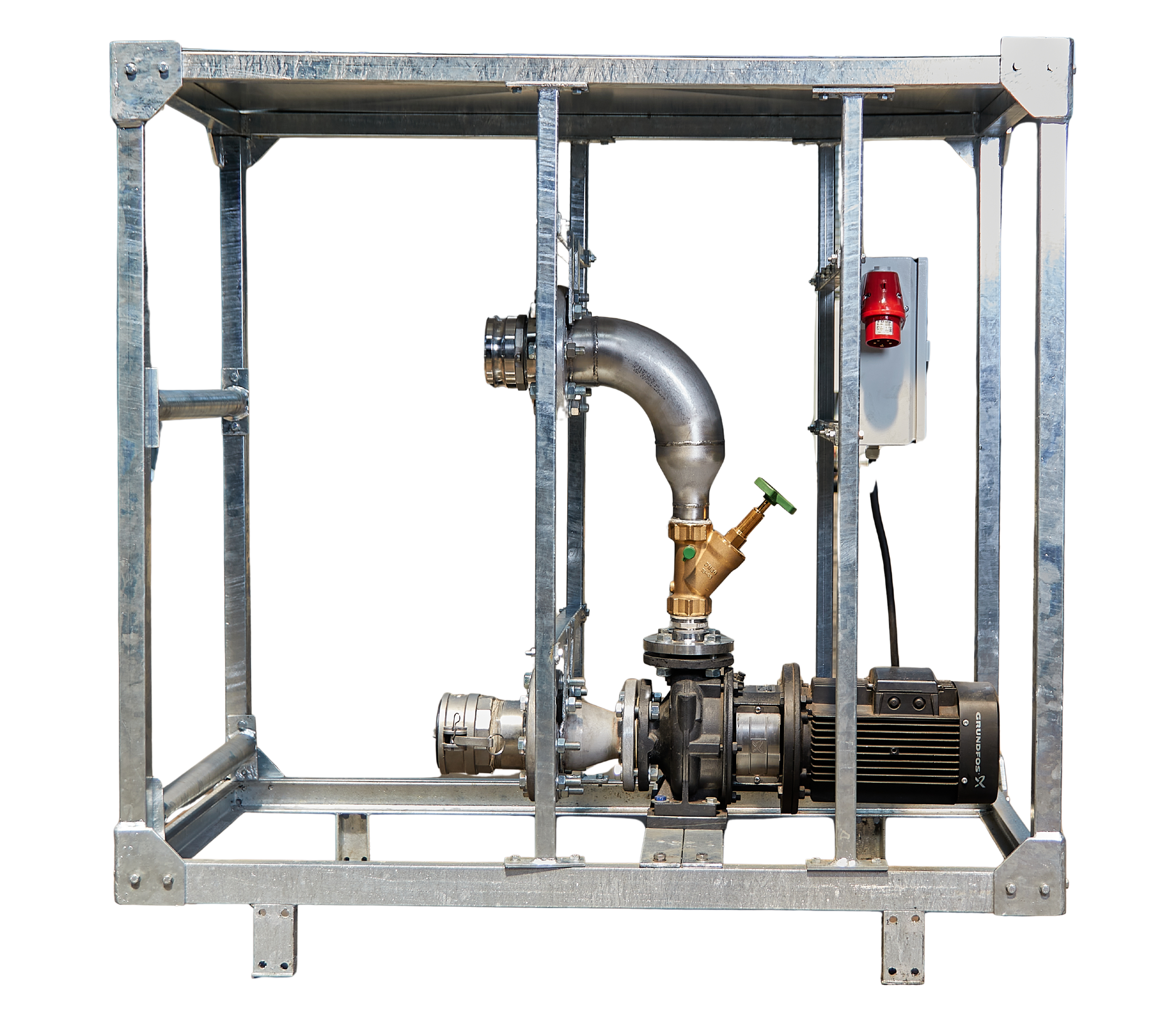

Pump P242 P242 45/1,6

Pump P242 P242 45/1,6

Connection size

-

Dimensions

1450 x 750 x 1400 mm

Weight

-

Pump data
Volume flow (m³/h) 15 30 45
Head (m) 22 19 16
Nominal pressure (bar) 2,2 1,9 1,6
Boundary conditions
Maximum pressure16 bar
Min. temperature0 °C
Max. temperature120 °C
Electrical data
Supply voltage400 V / 50 Hz / 3 Ph+N
Electrical connection16 A CEE Stecker
Total connected load4 kW
Connection options
Flange✓
Camlock✓
Storz✓
ValveStrangregulierventil
Dimensions and weight
Length1450 mm
Width750 mm
Height1400 mm
Special equipment
Kompaktes Transportgestell
Plug & Work durch einfache Bedienung
Notaus
